Ship Engine room platform enumeration
Ship has different platforms on which all the machinery are installed including the main engine and auxiliary machinery.
In this article we will discus about all machines as per the ship’s engine room platform.

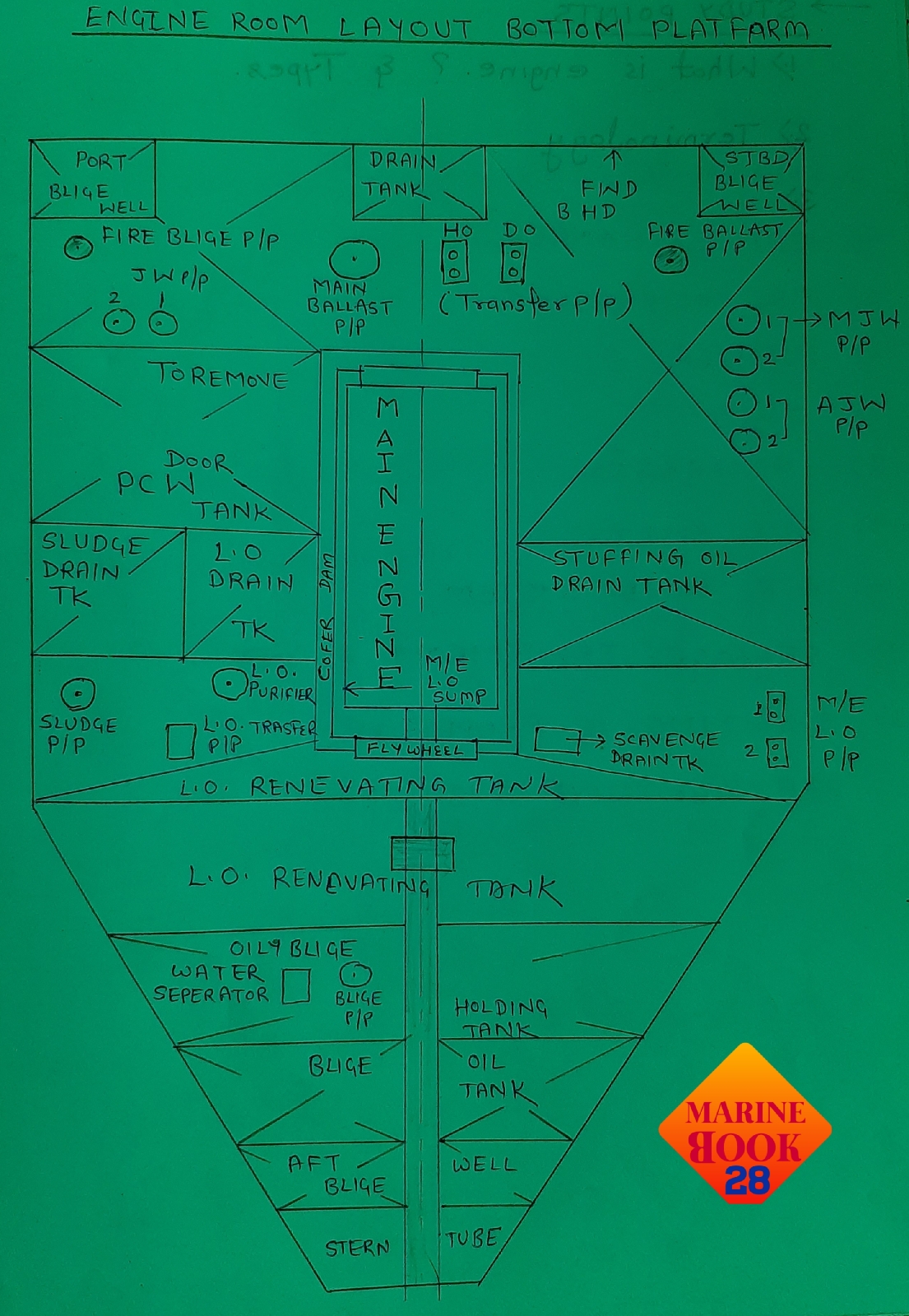

1. Bottom Platform : Ship’s bottom platform details as follows.
PUMPS
- Main sea water pump
- Auxiliary sea water pump
- Ballast pump
- Heavy oil transfer pump
- Diesel oil transfer pump
- Lube oil transfer pump
- Bilge pump
- fire pump
- Sludge pump
|
TANKS
- Fuel oil drain tank
- Sludge drain tank
- Lube oil drain tank
- Lube oil renovating tank
- Scavenge drain tank
- piston cooling water tank
- Bilge holding tank
|
AUXILIARY MACHINES
- Lube oil purifier
- Diesel oil purifier
- Oily water separator
BILGE WELLS
- Aft bilge well
- Port side bilge well
- Starboard side bilge well
- Cargo bilge well
- Center bilge well
|
2. Middle platform: Ship’s middle platform enumeration as follows
|
PUMPS
Main engine booster pump
Boiler feed pump
Fresh water condenser pump
Main engine fuel pump
|
COOLERS
Jacket water cooler
Lube oil cooler
FWG cooler
HEATERS
Purifier steam heater
Fuel oil heater |
AUXILIARY MACHINERY
Main air compressor
Auxiliary air compressor
Emergency air compressor
Control air compressor
Freshwater generator
Auxiliary generator
Heavy oil purifier
Diesel oil purifier |
3. Top platform : Ship’s top platform enumeration as follows
|
TANKS
M/E crankcase lube oil tank
Hot well tank
Diesel oil service tank
Diesel oil settling tank
Mixing column
Heavy oil service tank
Heavy oil settling tank
Expansion tank
Cylinder lube oil storage tank
|
PUMPS
Freshwater hydrophore pump
sanitary hydrophore pump
Sludge discharge pump
|
AUXILIARY MACHINERY
Exhaust boiler
Incinerator
Sewage plant
Freshwater hydrophore
Sanitary hydrophore
E/R overhead crane
Steam condenser
|
